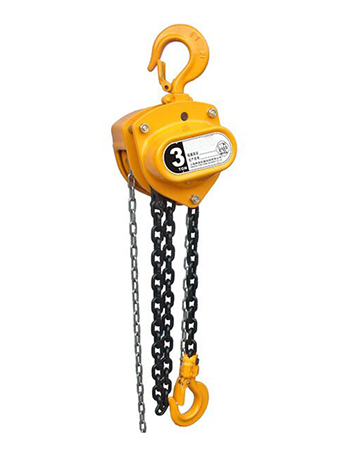

Chain Block
Type: HSZ-CD0.5/HSZ-CD1/HSZ-CD1.5/HSZ-CD1.5/HSZ-CD1.5/HSZ-CD1.5/HSZ-CD1.5/
Capacity(T): 0.5~50
Lifting height(m): 2.5~3
Test capacity(T): 0.75~62.5
Duty group: ISO M5
Protection degree: Ip54/Ip54Working
Temperature: -20~+40℃(max 60℃)
Working temperature: -20~+40℃(max 60℃)
Detailed introduction of double bearing chain block
HSZ CD type double bearing chain block is a kind of improved product, with more reasonable mechanism, small volume, more smooth pulling of Japanese double bearing design chain, avoiding chain jam and other phenomena. It is close to the market demand. It is a kind of widely used and popular product, which is sold in domestic and international markets, Portable manual lifting machinery can be used for machine installation, cargo lifting, vehicle loading and unloading of industry, agricultural construction industry, mining industry, etc., especially for open air and non power operation.
Application scope: it is the most ideal lifting equipment for lifting and transporting goods in factories, warehouses, docks, power stations, logging yards and other occasions.
| Lifting Capacity(t) | 5 | 10 | 16 | 20 | 32 |
| Span(m) | 10-40 | ||||
| Hoisting Speed(m/min) | 12.9 | 10.6 | 10.7 | 9.7 | 9.7 |
| Cross Travel Speed(m/min) | 38 | 36.5 | 36.5 | 36.5 | 36.5 |
| Long Travel Speed(m/min) | 72 | 72 | 72 | 72 | 72 |
| Control Model | Cabin operated though master controllers | ||||
| Working Class | ISO A5-A7 | ||||
| Steel Track | P38 | P43 | P43 | QU70 | QU70/80 |
