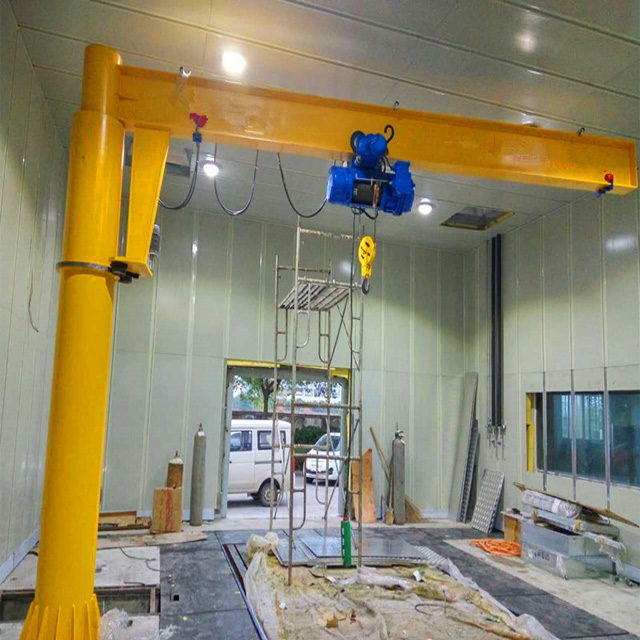

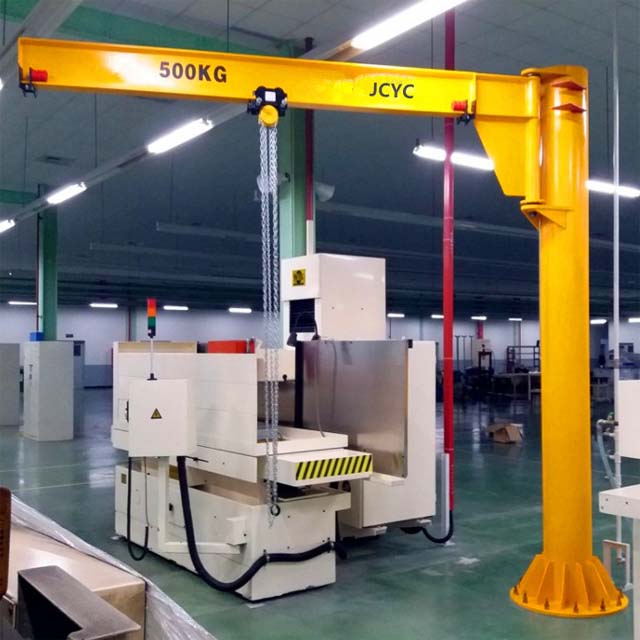

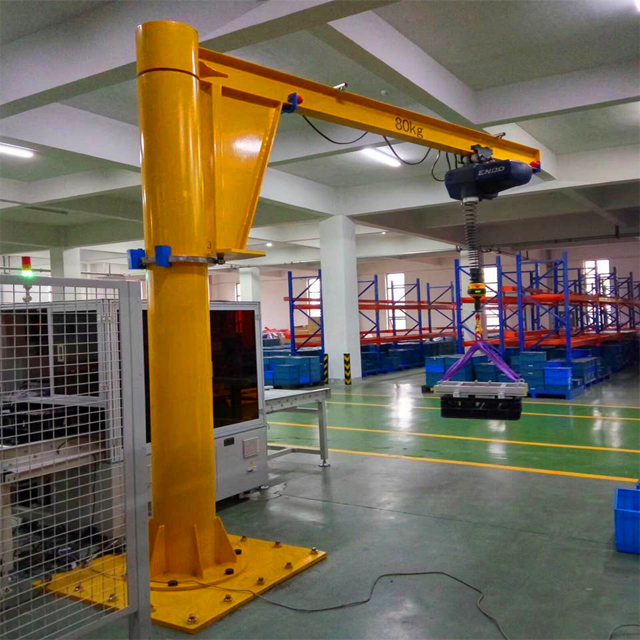

Column jib crane

Column Mounted Jib Crane is suitable for short distance, frequent…

Column Mounted Jib Crane is suitable for short distance, frequent use and intensive lifting operation. It is very practical and can be installed anywhere you can image.

Capacity：0.5T-10T

Span：3M-12M

Working class：A3

Leave message E-mail

Description Technical Data Features Inquiry

Description

Column jib crane

Features:

The jib crane series has many specifications and complete series. No matter you have any special requirements for lifting weight, rotation angle, arm length and function, we can provide you with the best solution. The lifting weight of the jib crane can range from 80KG to 0000. It is widely used in the transportation of materials on the job, especially in the smaller operation area, which can greatly shorten the handling time and improve the work efficiency.

Jib crane can be divided into 180 degrees, 270 degrees, or 360 degrees according to the different working area and scope. According to different installation methods and structural forms, it can be divided into wall-type jib cranes and column-type jib cranes. According to different rotation methods, it can be divided into manual jib crane and electric jib crane. Product advantages

The cantilever length and lifting capacity are graded in detail, which can accurately meet specific requirements.

(2) It has a limit stop for the rotation range, which can accurately adjust the working radius

(3) The control method can meet your specific needs: it can be connected by cable or wireless remote control

(4) The delivered goods contain a full set of electrical equipment

(5) Outdoor cranes can be equipped with climate protection accessories

Technical Data

capacity	Reach	Lifting speed	Basic Dimensions-Column Cantilever Crane Basic size-wall cantilever crane				Basic size-wall cantilever crane
GH/kg	L/m	m/min	H/mm	h/mm	HO/mm	Small heavy car/kg	h/mm	b/mm	Small heavy car/kg
80	2	.8/2	2145	2680	2500	120	660	236	40
	3			2700		140			50
	4			2700		160			70
	5			2720		220	800	376	100
	6		2135	2770		180	800	316	150
	7		2135	2770		310	900	341	200
125	2	.8/2	2145	2680	2500	120	660	236	40
	3			2700		140	660	236	50
	4			2720		200	800	276	80
	5		2135	2760		260	800	316	130
	6			2750		320	900	321	150
	7			2790		390	900	340	200
200	2	.4/1	2085	2680	2500	120	660	236	40
	3			2700		170	800	276	70
	4			2720		260	900	301	100
	5		2135	2770		310		320	130
	6			2810		390		341	170
	7			2810		500	1115	416	230
250	2	.4/1	2085	2680	2500	120	660	236	40
	3		2085	2720		180	800	296	80
	4		2080	2750		270	900	324	110
	5			2790		330	900	341	150
	6			2790		440	1115	416	230
	7			2840		540	1115	436	300
400	2	.4/1	2060	2700	2500	160	800	276	50
	3		2065	2750		250	900	321	90
	4			2790		300	900	341	120
	5			2810		430	1115	416	200
	6			2840		500		436	260
	7			2900		640		466	330
500	2	.4/1	2055	2720	2500	160	800	296	60
	3			2750		250	900	321	90
	4			2790		380	1115	416	180
	5			2840		460		436	230
	6			2900		580		466	300
	7			2880		730	1215	470	330
800	2	.4/1	2050	2770	2500	210	900	321	70
	3			2790		310	1115	416	150
	4			2840		330	1115	436	200
	5			2850		500	1215	470	260
	6			2910		560		500	330
	7			2940		600		530	430
1000	2	.4/1	2000	2770	2500	310	1115	396	110
	3			2810		370		436	160
	4			2870		450		466	220
	5			2940		730	1215	500	290
	6			2980		850	1215	530	380
1600	2	.4/1 / 1.1	2050	2810	2500	330	1115	416	120
	3			2850		530	1215	470	180
	4			2910		630		500	140
	5			2940		730		530	370
2000	2	.4/5 / 1.1	2050	2810	2500	330	1115	436	130
	3			2850		530	1215	500	200
	4			2910		630	1215	530	270
2000	2	.4/5 / 1.1	1885	2850	2500	490	1215	470	140
2000	3	.4/5 / 1.1	1885	2910	2500	580	1215	530	220
