European standard electric double girder bridge crane

Capacity：1.6T-100T Span：≥6M Working class：A5.A6

Capacity：1.6T-100T

Span：≥6M

Working class：A5.A6

Leave message E-mail

Description Technical Data Features Inquiry

Description

Product features of European standard electric double girder bridge crane:

The European standard electric double-beam bridge crane has a compact design, light weight, low wheel pressure and uniform load distribution, which allows customers to save considerable investment and greatly increase the effective working space. It is not only safe and reliable, but also ergonomic in design, easy to operate, safe and comfortable, making material conveying more convenient and efficient. There are many dosing options for customers to choose from, such as lifting frequency conversion, double hoist, remote control, etc., to meet the needs of various working conditions or logistics transportation.

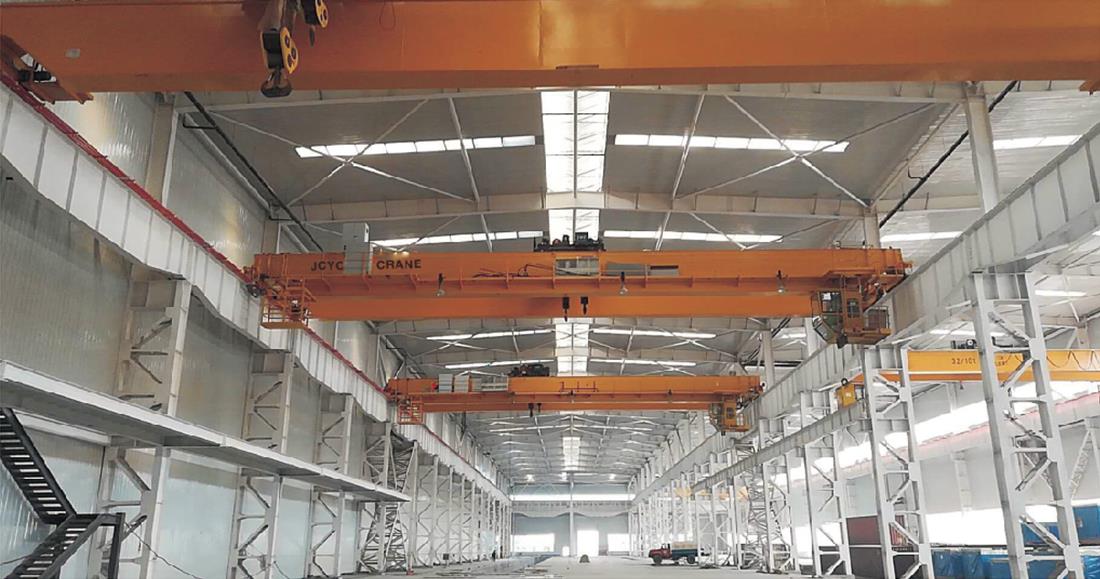

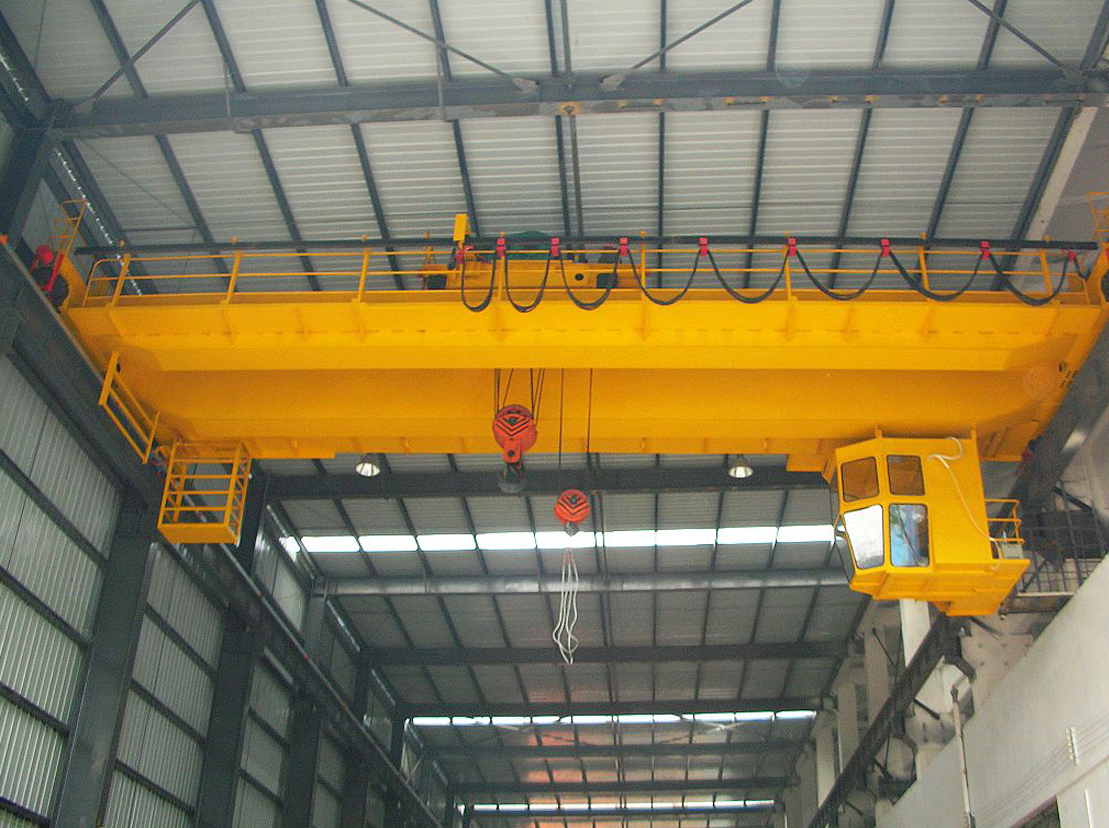

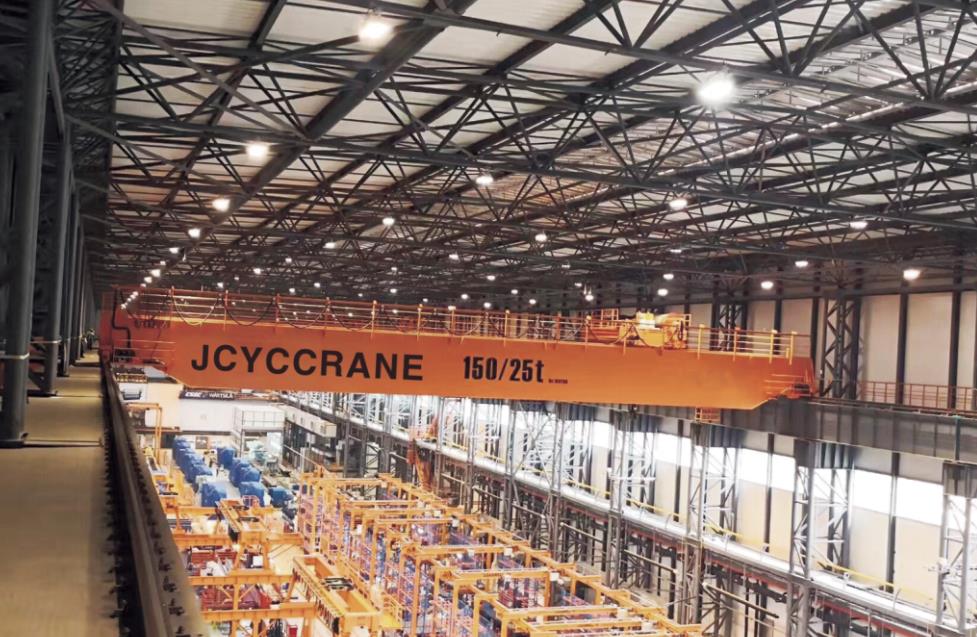

European standard electric double beam bridge crane

C The maximum tonnage is 120 tons, the maximum span is 30 meters

.Large lifting weight, low headroom, low wheel pressure and stable operation

Quick positioning, engineering design, comfortable operation

(After rigorous testing, long service life, low maintenance

(Safe and reliable, improve production efficiency, and create greater profits）

Technical Data

capacity	span	lifting speed	working class	lifting speed	basic size（mm）							trolley weight	total weight	rail	total power	Maximum pressure roller
t	m	m	GB	m/min	H	B	L1	L2	W	L	BH	t	t		KW	KN
5	10.5	9	A5	5/0.83	1050	90	850	800	2700	3026	130	0.35	3.5	P24	7.1	36.6
	13.5				1100	90			2700	3056	130		4.6		7.1	40.2
	16.5				1130	90			2700	3116	130		5.7		7.1	42.9
	19.5				1160	90			3100	3550	130		6.7		7.1	45.3
	22.5				1200	90			3800	4230	130		9.6		7.8	48.8
	25.5				1250	141			3800	4310	220		12.6		7.8	56.2
	28.5				1350	141			4500	5010	220		14.6		7.8	61
	31.5				1450	141			5000	5584	220		16.5		9.6	66
10	10.5	9	A5	5/0.83	1100	129	850	800	2700	3166	130	0.67	4.6	P24	12.3	63
	13.5				1150	129			2700	3176	130		6		12.3	69
	16.5				1200	129			2700	3210	130		7.5		12.3	74.5
	19.5				1250	129			3100	3610	130		10.1		12.3	79.1
	22.5				1300	129			3800	4310	130		11.5		13.1	84
	25.5				1400	241			3800	4310	220		14.4		13.1	90.1
	28.5				1500	260			4500	5010	220		18.1		13.1	97.6
	31.5				1600	260			5000	5624	220		22.1		14.5	109
16	10.5	9	A5	5/0.83	1280	255	1000	1000	3007	3423	130	1.2	6.1	P24	22.2	47.6
	13.5				1380	255			3033	3483	130		7.8		22.5	50.7
	16.5				1480	255			3056	3506	130		9.4		22.5	53.4
	19.5				1580	255			3077	3527	130		11.1		22.5	56.7
	22.5				1680	255			3312	3762	130		13.9		22.5	59.1
	25.5				1780	271			3650	4100	220		16.2		23.9	62.9
	28.5				1880	271			4472	4982	220		18.9		23.9	67.2
	31.5				1980	271			5048	5998	220		23.9		23.9	73.6
20	10.5	9	A4/A5	5/0.83	1400	155	1000	1000	2986	3402	130	1.3	6.3	P30	23.2	60.2
	13.5				1500	155			3006	3456	130		7.9		23.2	63.5
	16.5				1600	155			3025	3476	130		9.8		23.2	66.6
	19.5				1700	163			3547	4057	130		13.6		24.6	70.7
	22.5				1800	163			3589	4099	130		15.8		24.6	74.3
	25.5				1850	163			3608	4118	220		18.3		24.6	77.7
	28.5				1900	271			4430	4980	220		21.1		26.2	82
	31.5				1950	271			5000	5550	220		25.4		26.2	87.8
25	10.5	9	A5	4/0.7	1600	155	1000	1000	3264	3741	130	2	7.4	P30	36.6	72.8
	13.5				1650	155			3480	3990	130		9.7		36.6	76.6
	16.5				1700	155			3496	4006	130		11.7		38.2	80
	19.5				1800	155			3527	4037	130		14.1		38.2	83.7
	22.5				1950	155			3545	4055	130		19.9		38.2	86.5
	25.5				2000	160			3961	4511	220		24.2		40.2	91.3
	28.5				2050	160			4769	5393	220		30.9		40.2	96.8
	31.5				2150	160			4982	5606	220		25.4		40.2	118.5
40	10.5	9	A4/A5	4/0.7	1800	155	1200	1200	3454	3964	130	2.7	9.3	P41	45	108.4
	13.5				1850	155			3467	3977	130		10.5		45	113.3
	16.5				1900	155			3569	4153	130		13.4		45	117.6
	19.5				2000	155			3908	4492	130		16.1		45	122.7
	22.5				2050	155			3924	4548	130		19.1		45	127.1
	25.5				2120	171			3941	4656	220		22.9		45	129.7
	28.5				2170	171			4496	5120	220		26.5		45	134.2
	31.5				2250	171			5154	6086	220		33.1		47	142.3
50	10.5	9	A5	4/0.7	1900	163	1300	1300	3569	4153	150	3	9.5	P43	45	140.3
	13.5				1950	163			3569	4153	150		11.9		45	145.6
	16.5				2000	163			3569	4153	150		14.6		45	149.5
	19.5				2100	163			3896	4520	150		17.9		45	146.5
	22.5				2150	163			4378	4520	150		22.3		45	153.5
	25.5				2200	171			4354	5170	220		25		47	156.6
	28.5				2250	171			4678	5610	220		34		47	165.2
	31.5				2400	171			5154	6086	220		37.6		47	172
