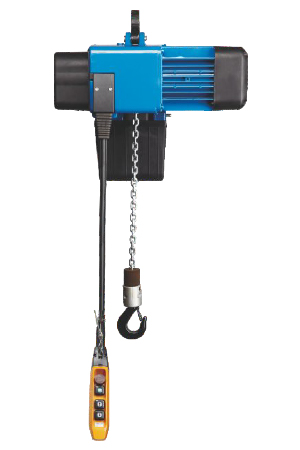

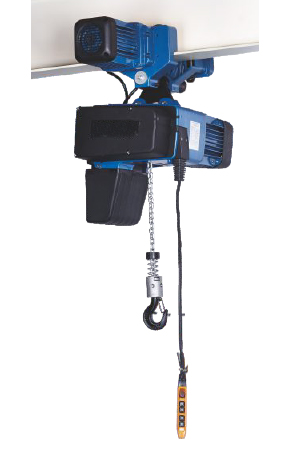

PK New type Electric chain hoist

The Electric Chain Hoist is a light and small lifting…

The Electric Chain Hoist is a light and small lifting device. It mainly consists of motor, transmission mechanism and sprocket. The internal gears are all quenched by high temperature, which increases the wear resistance and toughness of the gears.

Type: BMS0.125-01M~BMS02-02M

Capacity (KG): 125~2000

Voltage: 220-460

Motor speed（r/min）: 2880/720

Power(KW):0.4/0.1~1.5/0.37

Lifting speed （m/min）:8/2~4/1

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Leave message E-mail

Description Technical Data Features Advantages Inquiry

Description

PK new Type electric chain hoist has the advantages of high performance, high safety and reliability. The humanized design concept is adopted to increase the production and achieve the highest efficiency.

Technical Data

Model	Capacity （KG）	Lifting speed （m/min）	Power （Kw）	Motor speed （r/min）	Voltage （V）	Hand control voltage （V）	Work duty （FEM/ISO）
BMS0.125-01M	125	8/2	0.4/0.1	2880/720	220-460	24	2M/M5
BMS0.125-01M	125	13/3.2	0.75/0.2	2880/720	220-460	24	2M/M5
BMS0.25-01M	250	8/2	0.4/0.1	2880/720	220-460	24	2M/M5
BMS0.5-01M	500	8/2	0.75/0.2	2880/720	220-460	24	2M/M5
BMS0.5-02M	500	4/1	0.4/0.1	2880/720	220-460	24	2M/M5
BMS01-01M	1000	8/2	1.5/0.37	2880/720	220-460	24	2M/M5
BMS01-02M	1000	4/1	0.75/0.2	2880/720	220-460	24	2M/M5
BMS02-02M	2000	4/1	1.5/0.37	2880/720	220-460	24	2M/M5

Model	L	L1	L2	L3	A	B	C	C1
BMS0.125-01M	440	260	164	100-200	201	288	4470	470
BMS0.125-01M	464	260	164	100-200	201	315	490	495
BMS0.25-01M	440	260	164	100-200	201	288	470	470
BMS0.5-01M	464	260	164	100-200	201	315	490	495
BMS0.5-02M	440	260	164	100-200	201	288	540	470
BMS01-01M	548	305	190	100-200	340	343	600	680
BMS01-02M	464	260	164	100-200	315	315	560	495
BMS02-02M	548	290	200	100-200	340	343	670	69

Features

Advantages

PK new type electric chain hoist has flexible action and accurate positioning. The main lifting speed is fast and effective, and the low-speed lifting ensures stable load and accurate positioning.
In the actual work, the working level of PK new type electric chain hoist is 20% higher than that of the ordinary 2m working level, which means that it can prolong the service life and reduce the number of overhaul, which is also the unique feature of PK new type electric chain hoist.
All the main driving parts of PK new type electric chain hoist, such as gearbox, brake and clutch, are made by special process, which is firm and durable.
PK new Type electric chain hoist sprocket design is compact, plug and play, quick and convenient replacement, and does not need to remove the motor or gearbox components. The maintenance work is fast and simple.
