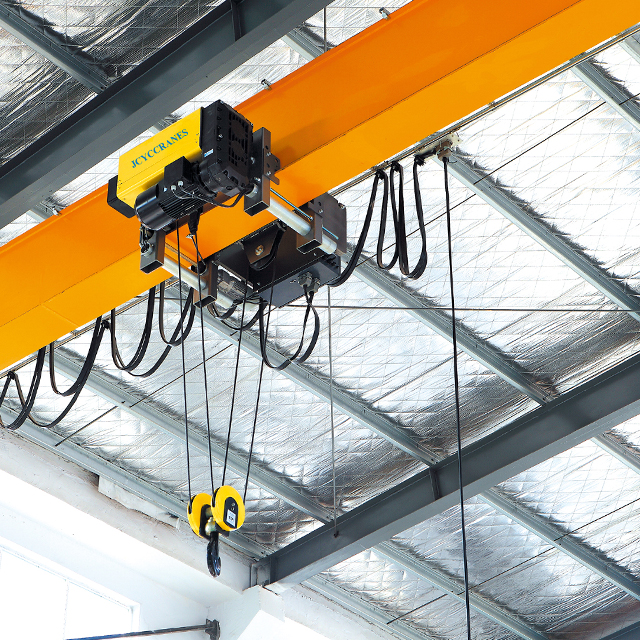

European standard electric single girder bridge crane

Capacity：1.6T-100T Span：≥6M Working class：A5.A6

Capacity：1.6T-100T

Span：≥6M

Working class：A5.A6

Leave message E-mail

Description Technical Data Features Inquiry

Description

Product features of European standard electric single girder bridge crane:

The European standard single beam bridge crane is a new generation of innovative products with superior performance, compact structure and small net space size, which can make full use of the effective space of the plant. Fully consider the needs of customers, so that customers increase safety and comfort during use. The standard configuration is trolley frequency conversion and large vehicle frequency conversion, so that the driving operation is stable and reliable, and the lifting frequency conversion or double hoist operation can be proportioned according to the needs of the customer’s on-site working conditions. The maximum lifting weight is 20T, and the maximum span is 30 meters.

Technical Data

Capacity	Span	Lifting height	Working class	Lifting speed	Basic size（mm）						Trolley weight	Total weight	Rail	Total power	Maximum wheel pressure
t	m	m	ＧＢ	Ｍ／min	H	B	L1	L2	W	L	t	t		KW	KN
2	7.5	6-18	A5	5/0.85	650	90	700	750	1800	2240	0.2		P 22	3.2	13.2
	10.5				700	90			1800	2240				3.2	14.5
	13.5				700	90			2200	2640				3.2	15.5
	16.5				850	90			2700	3140				3.2	18.4
	19.5				950	90			3100	3440				3.2	20.9
	22.5				950	90			3800	4140				3.2	23.1
	25.5				1150	130			4500	4140				3.2	25.1
	28.5				1250	130			5000	4840				3.2	30.1
3.2	7.5	6-18	A4/A5	5/0.85	650	90	700	750	1800	2240	0.35		P22	5.15	18.8
	10.5				650	90			1800	2240				5.15	20.3
	13.5				800	90			2200	2640				5.15	21.8
	16.5				850	90			2700	3140				5.15	24.5
	19.5				900	90			3100	3440				5.15	25.8
	22.5				1000	90	700	1000	3800	4140				5.15	29.5
	25.5				1250	130			3800	4280				5.55	31.2
	28.5				1350	130			4500	4980				5.55	35.8
5	7.5	6-18	A5	5/0.85	710	90	700	1000	1800	2240	0.38		P24	6.05	27.1
	10.5				760	90			1800	2240				6.05	29.5
	13.5				810	90			2200	2640				6.05	31.2
	16.5				960	90			2700	3140				6.05	35.8
	19.5				1060	90			3100	3440				6.45	27.1
	22.5				1160	90			3800	4280				6.45	29.4
	25.5				1290	130			3800	4280				6.45	31.2
	28.5				1400	130			4500	4980				6.45	35.8
6.3	7.5	6-18	A4/A5	5/0.85	760	90	750	1000	1800	2400	0.66		P24	11	27.1
	10.5				810	90			1800	2240				11	56.2
	13.5				860	90			2200	2640				11.4	47.5
	16.5				1010	90			2700	3140				11.4	51
	19.5				1110	90			3100	3440				11.4	56.2
	22.5				1210	90			3800	4280				11.4	47.6
	25.8				1300	130			3800	4280				12.1	51
	28.5				1450	130			4500	4980				12.1	56.2
10	7.5	6-18	A4/A5	5/0.85	810	90	750	1000	1800	2240	0.66		P24	11	47.6
	10.5				1010	90			1800	2280				11.4	55.2
	13.5				1110	90			2200	2680				11.4	58.3
	16.5				1210	90			2700	3180				11.4	61.2
	19.5				1360	90			3100	3580				11.4	64.4
	22.5				1460	90			3800	4280				12.1	69.3
	25.5				1560	130			3800	4490				12.1	72.4
	28.5				1700	130			4500	5190				12.4	77
12.5	7.5	6-18	A 4/A5	5/0.85	950	90	750	1000	1800	2280	0.71		P30	18.55	62.4
	10.5				1050	90			1800	2280				18.55	67.3
	13.5				1150	90			2200	2680				18.55	71
	16.5				1250	90			2700	3180				18.55	74.3
	19.5				1350	90			3100	3580				18.55	78.2
	22.5				1450	90			3800	4280				18.55	83.5
	25.5				1650	130			3800	4490				19.35	87.4
	28.5				1750	130			4500	5190				19.35	94.2
