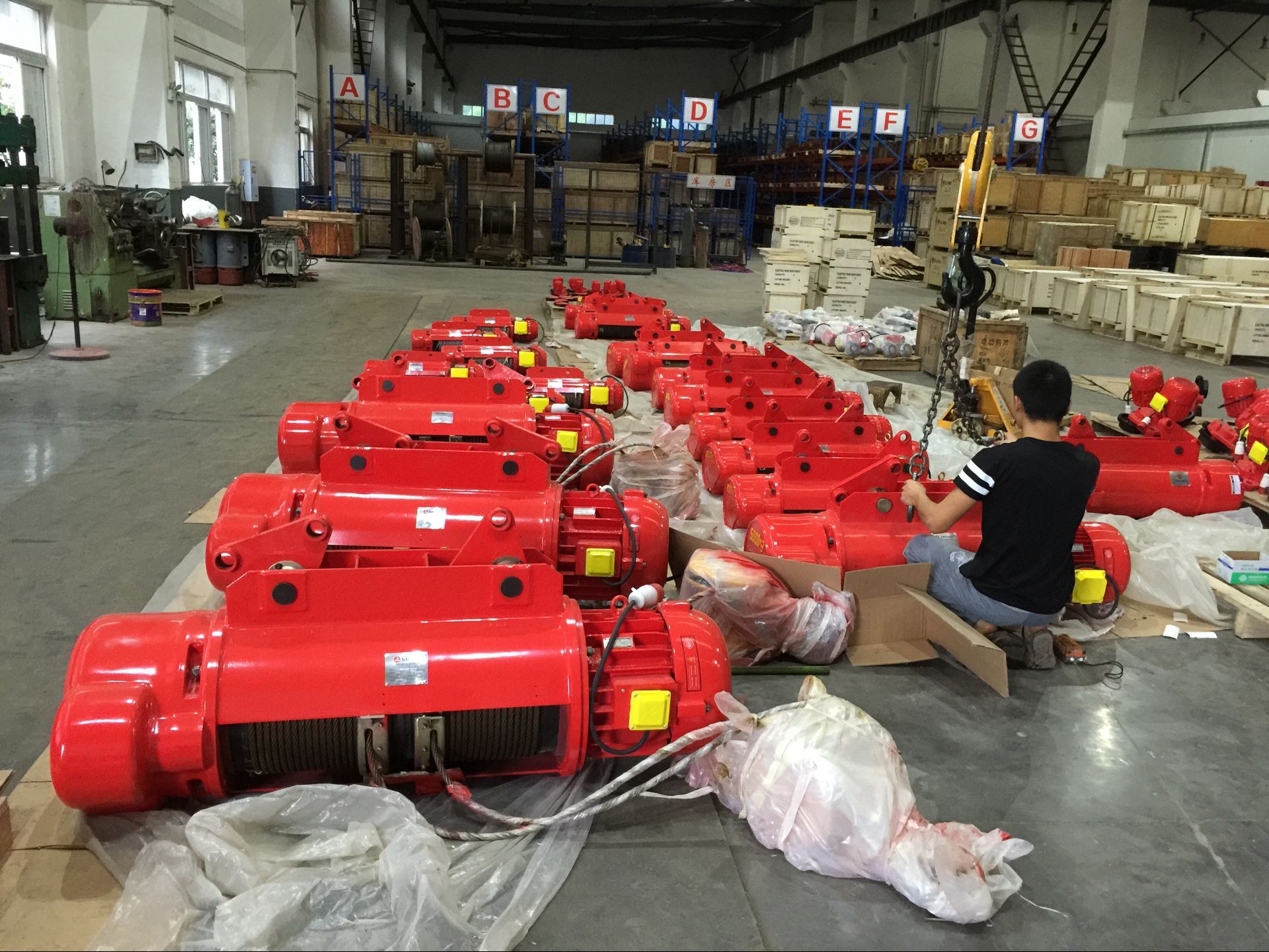

CD1 Electric Wire Rope Hoist

cable hoist

Capacity(T): 0.25~32

Lifting height(m): 3/6/9/12/18/24/30 or as request

Lifting speed(m/min): 3~8

Travel speed(m/min): 20/30

Power supply: AC, 3-phase, 220~690V, 50Hz

Working group: M3

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Leave message E-mail

Description Technical Data Features Inquiry

Description

Brief Introduction

The electric wire rope hoist CD1/MD1 model have features of compact, light, small-sized shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry cranes. The electric hoist model MD1 with double lifting speeds should be used in case where the hoist model CD1 can not meet the requirements for fine adjustments during precision operations.

Main Characteristics

* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane etc..

* With slight modification, it can also be used as a winch.

* It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

* Model CD1 electric hoist has only normal speed, which can satisfy normal application.

* Model MD1 electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools. etc.

Technical Data

CD/MD series electric hoist technical parameters and dimensions（0.25T-20T）
Model				CD1 MD1																								CD1						MD1					CD						NH20-12D
Capacity	Tons			0.25			0.5			1						2						3						5						10					16			20			20
Lifting	Meters			3	6	9	6	9	12	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	9	12	18	24	30	6	9	12	18	24	30
lift speed	m/min			8			8/0.8			8/0.8						8/0.8						8/0.8						8/0.8						7/0.7					3.5 3.5/0.35			3.5 3.5/0.35			5
travel speed	m/min			20(30)			20(30)			20(30)						20(30)						20(30)						20(30)						20(30)					18			20			20
Wire rope	Rope dia.	mm		3.6			4.8			7.4						11						13						15						15					15			17			22.5
	Wire dia.	mm					0.22			0.34						0.5						0.6						0.7						0.7					0.7			0.8
	structure form			6×9			D-6×37+1			D-6×37+1						D-6×37+1						D-6×37+1						D-6×37+1						D-6×37+1					D-6×37+1			D-6×37+1			D-6×37+1
I beam（GB76-88）				16-22b			16-28b			16-28b						20a-32c						20a-32c						25a-63c						25a-63c					45a-63c			50a-63c
Minimum radius of circular orbit		m		0.8			1.5			1.5		2		3	4	2		2.5		3	4	2		2.5		3	4	2.5		3		4	5	2.5	3.5	4	6	9	3	3.5	4.6	3	3.5	4.6
lifting motor	model			ZD12-4			ZD21-4			ZD21-4						ZD31-4						ZD41-4						ZD41-4						ZD51-4					ZD51-4			ZD51-4
	power	kw		0.4			0.8 0.2/0.8
	R.P.M.	r/min		1380			1380			1380						1380						1380						1380						1380					1380			1380			1380
	phase			3			3			3						3						3						3						3					3			3			3
	voltage	volt		380			380			380						380						380						380						380					380			380			380
	current	A		1.25			2.4 0.72/2.4			4.3 0.72/4.3						7.6 1.25/7.6						11 2.4/11						18 2.4/18						30 4.3/30					30 4.3/30			30 4.3/30
	frequency	Hz		50			50			50						50						50						50						50					50			50			50

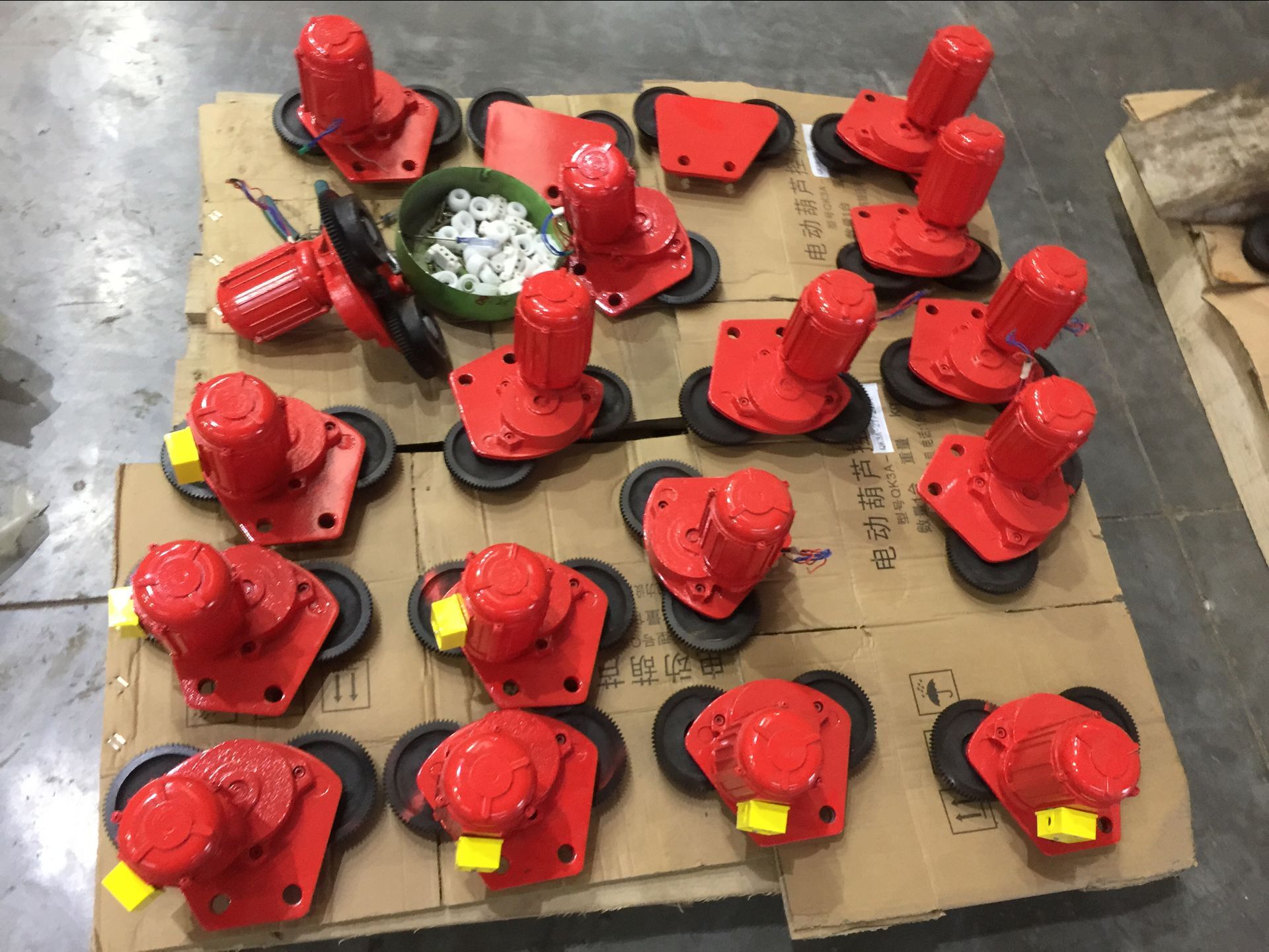

running motor	model			DW5024			ZDY11-4			ZDY12-4						ZD12-4						ZDY21-4						ZDY21-4						ZDY21-4					ZDY21-4			ZDY21-4
	power	kw		0.06			0.2			0.2						0.4						0.4						0.8						0.8×2					0.8×2			0.8×2			0.8×2
	R.P.M.	r/min		1400			1380			1380						1380						1380						1380						1380					1380			1380			1380
	phase			3			3			3						3						3						3						3					3			3			3
	voltage	volt		380			380			380						380						380						380						380					380			380			380
	current	A		0.3			0.72			0.72						1.25						1.25						2.4						2.4×2					2.4×2			2.4×2			2.4×2
	frequency	Hz		50			50			50						50						50						50						50					50			50			50
working grade and structure level				Mid-M3			Mid-M3			Mid-M3						Mid-M3						Mid-M3						Mid-M3						Mid-M3					Mid-M2			Mid-M2
Basic dimensions ±2%	H		mm	432			630		670	685			780			860			960			985			1080			1160			1310			1350					1600			2400
	L2			216			126			159						187						230						274						303					same with 10t
	L1			175			228/225			269/266						279						341/343						380/377						429/820					same with 10t
	L	C		391			616	688	760	758	856	955	1150	1346	1542	820	920	1020	1220	1420	1620	915	1018	1121	1327	1533	1738	1047	1157	1257	1467	1677	1887	1602	1783	2145	2507	1869	same with 10t
		M					638	710	782	780	878	976	1172	1368	1564													1059	1169	1269	1479	1682	1899	1969	2150	2512	2874	3236
	m			104			318	390	462	400	499	597	793	989	1185	418	518	618	818	1018	1218	448	551	654	860	1066	1272	485	606	695	860	1115	1325	949	1130	1492	1854	2216	949	1130	1492	956	1478	1605
	n			130			190			196						240						264						320						376					376			376
	h						120			124						155						173						203						243					41			46
	φ			16.5			16.5			19						25						25						31						37
	B			279-315			-884			-884						-930						-930						-1058						-1058
	E			395			490			584						740						848						998						1068					1335			1934
	F						355/426			354/492						400/562						438/642						472/675						612					1055
Total weight ±15%	C		kgs	44	44.4	44.8	120	125	145	145	158	180	195	208	222	235	248	296	320	340	360	280	300	350	380	405	435	445	470	555	590	630	670	1010	1063	1166	1263	1317
	M						135	140	160	160	170	200	210	220	230	265	278	326	350	370	310	310	330	380	410	435	465	480	505	590	630	660	705	1100	1153	1256	1353	1407
	C fixed			30	30.4	30.8	80	85	90	120	120	125	140	150	165	168	180	190	210	230	250	220	235	250	275	300	325	355	375	390	425	460	500	759	807	900	987	1032
	M fixed						100	105	110	130	140	145	155	165	180	196	210	220	240	260	280	250	265	280	305	330	355	390	410	425	460	500	535	849	897	990	1077	1122
