cable hoist
Capacity(T): 3.2T
Lifting height(m): 3/6/9/12/18/24/30 or as request
FEM/ISO: 2m/M5
Lifting speed(m/min): 0.8/5 double speed
Travel speed(m/min): 5~20 double speed
Power supply: AC, 3-phase, 220~690V, 50Hz

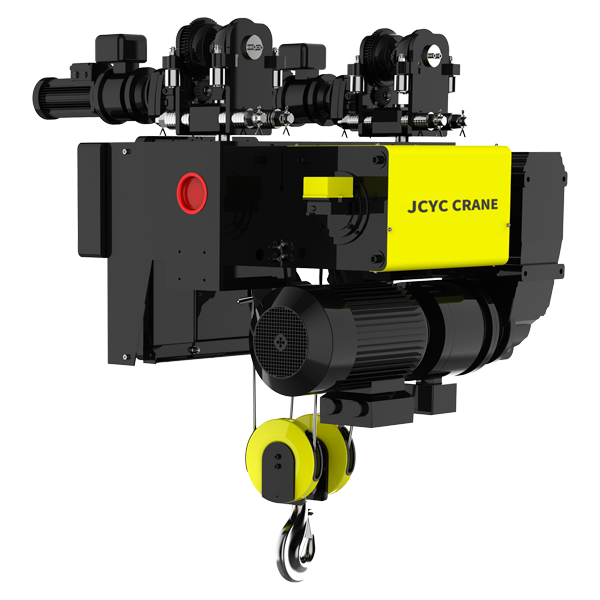

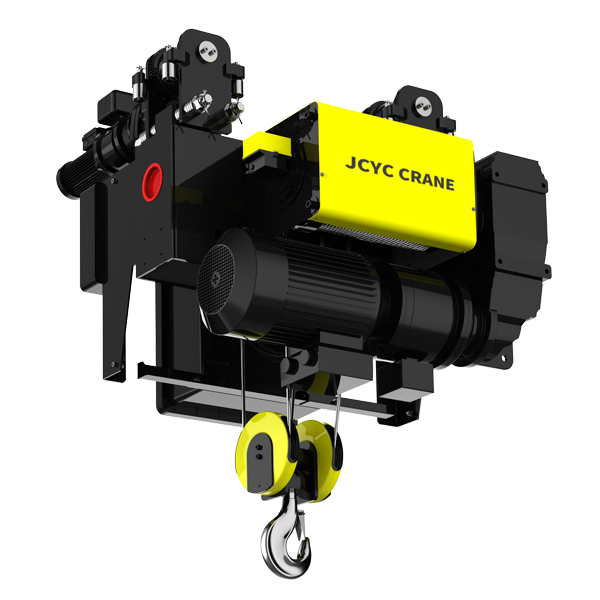

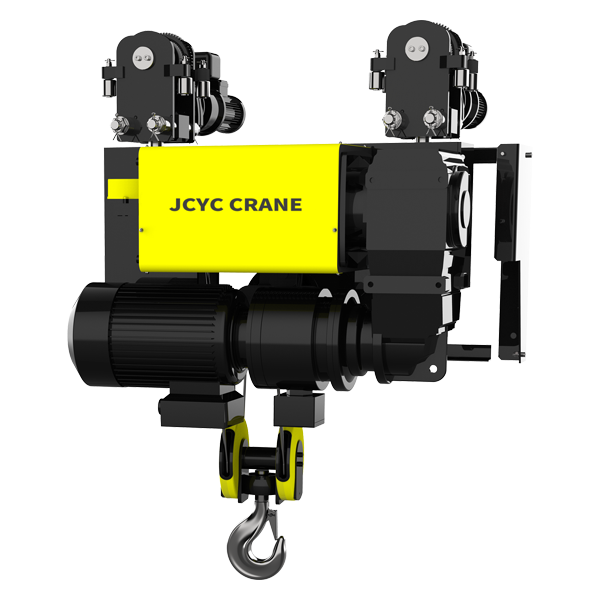

Single girder standard headroom electric wire rope hoist 3.2T
Compact structure, light weight, small wheel pressure, maximized use of space, and comprehensive cost-effective.
Selected high-quality components, safe and reliable, durable.
Accurate positioning, efficient operation, and improved logistics efficiency.
Safe and reliable, operation monitoring, easy maintenance.
Modular design, low maintenance cost, perfect spare parts service.
| Lifting height(m) | Working group | Lifting speed(m/min) | Lifting Motor Power (KW) | Travel speed(m/min) | Running motor power(KW) | Hoist N.W(kg) |
| 6 | 2m(M5) | 0.8/5 | 0.45/3.2 | 5-20 | 0.64 | 291 |
| 9 | 2m(M5) | 0.8/5 | 0.45/3.2 | 5-20 | 0.64 | 311 |
| 12 | 2m(M5) | 0.8/5 | 0.45/3.2 | 5-20 | 0.64 | 328 |
electric hoist drawing
| Lifting height(m) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L5(mm) | B(mm) |
| 6 | 550 | 1001 | 318 | 98 | 6000 | 100-200 |
| 9 | 700 | 1151 | 268 | 147 | 9000 | 100-200 |
| 12 | 900 | 1351 | 268 | 196 | 12000 | 100-200 |
