Level block is a kind of widely used and portable…
Level block is a kind of widely used and portable manual operating hoisting machine, it can be used in machine installation, products lifting, loading and unloading in industry, agriculture, construction and mineral production. It is suitable to be used in the open air and no electric power works.
Capacity：0.25T-0.5T
Standard lifting height：1.5M
Features of light small chain lever block:
Brief introduction of light small chain lever block:

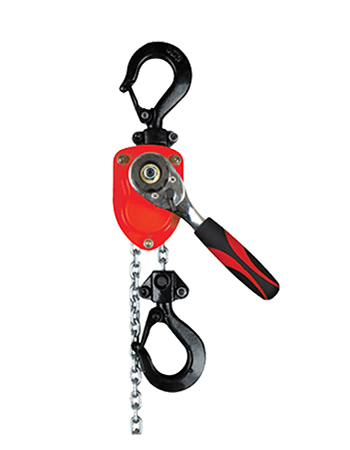

The light and small chain lever block, the upper and lower hooks are universal, and it can be easily hung to high places. The hook adopts 35CRM0, excellent tightening feeling, small lever force, clicks and clicks can be tightly fastened, high-strength Load-bearing chain, the surface of the hoisting chain is galvanized.
Precautions for light and small chain lever block:
| Model | Capacity （kg） |
Lifting height （m） |
Test load （t) |
Headroom （mm) |
No.of load chain | Hand pull （N） |
Dia. of chain （mm） |
Net weight （kg） |
| JTV3-0.25T | 250 | 1 | 3.75 | 215 | 1 | 125 | 4*12 | 0.35 |
| JTV3-0.5T | 500 | 1.5 | 7.5 | 255 | 1 | 180 | 5*15 | 0.55 |
