Capacity：0.25T-9T Standard lifting height：1.5M
Capacity：0.25T-9T
Standard lifting height：1.5M
Features:

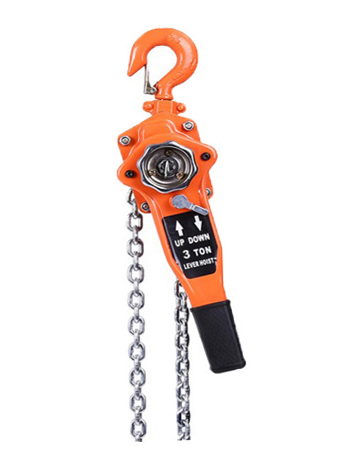

HSH chain lever block in detail
HSH chain lever block series mainly include (0.75T-6T) 0.75T, 3T, 6T and other tonnages. It has a reasonable design, advanced structure, high body strength, safe, reliable use and convenient maintenance. It is widely used in equipment installation, article lifting, machine traction, loose parts bundling, line tensioning and welding alignment in electric power, mining, shipbuilding, construction, transportation, post and telecommunications departments, especially in small workplaces and fields. High-altitude operations and various angles of pulling are even more superior.
HSH chain lever block is operated by manually pulling the handle, which can complete heavy lifting and equipment installation. In addition to being used alone, it can also be used with other lifting products such as monorail trolleys. The lever hoist not only has reasonable structure design, high product performance and strength, but also has the advantages of safety, reliability, easy maintenance and strong durability in use.
Advantages of HSH chain lever block:
It has a unique elastic clutch technology, which greatly improves the use requirements of the product in height, and can lift heavy objects at any height. The hand-pulling device has higher sensitivity and can easily move the handle to complete the work. The hook is manufactured by forging, especially the tip of the hook, which has very strong toughness. Even if it is hit hard, it only bends slowly.
| Model | HSH-E0.25T | HSH-E0.5T | HSH-E0.75T | HSH-E1.5T | HSH-E3T | HSH-E6T | HSH-E9T | |
| Capacity(kg) | 250 | 500 | 750 | 1500 | 3000 | 6000 | 9000 | |
| Lifting height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test capacity(kg) | 315 | 750 | 1125 | 2500 | 4500 | 7500 | 11250 | |
| Hand power when full load(N) | 280 | 350 | 250 | 310 | 410 | 420 | 420 | |
| Spec. of load chain | Chain falls | 1 | 1 | 1 | 1 | 2 | 3 | 4 |
| DiaXPitch | 4*12 | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 | |
| Min.distance between 2 hooks | H mm | 260 | 350 | 440 | 550 | 650 | 650 | 780 |
| Length of handle | D mm | 160 | 310 | 285 | 410 | 410 | 410 | 410 |
| Net weight | kg | 3.6 | 4 | 6.7 | 11 | 17.5 | 25.5 | 49.8 |
| Dimension | A | 72 | 95 | 155 | 190 | 200 | 200 | 210 |
| B | 92 | 102 | 120 | 140 | 150 | 150 | 150 | |
| C | 960 | 110 | 130 | 150 | 200 | 220 | 340 | |
| φ | 30 | 35 | 37 | 45 | 55 | 65 | 75 | |
| E | 22 | 26 | 35 | 42 | 42 | 45 | 68 | |
