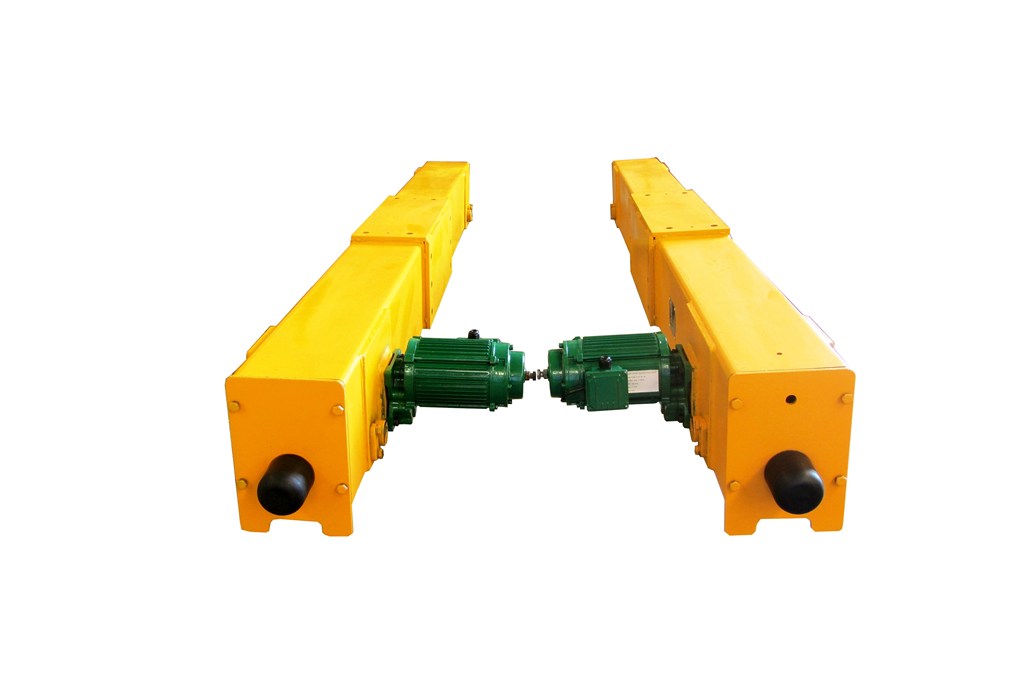

Crane end carriage

Brief Introduction

The end beam is the driving unit for track walking, which can be directly connected with the main beam structure and adopts box beam design. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures. The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics – also for high loads.

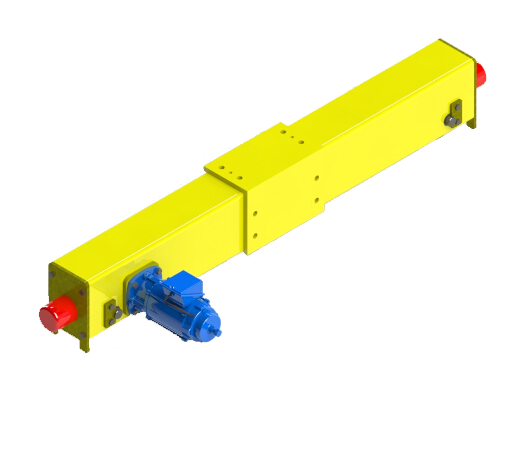

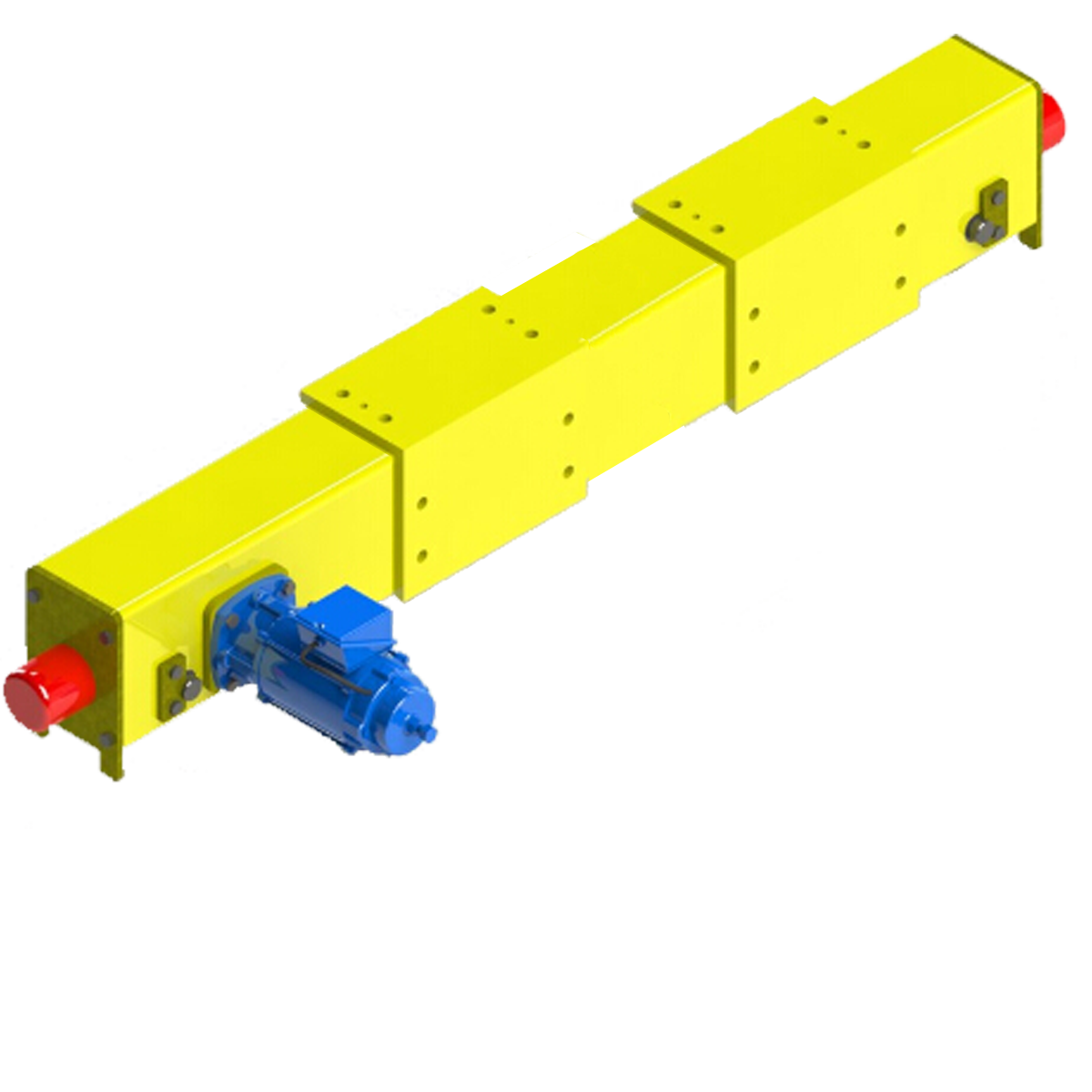

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment. It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance very easily. European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.

Main Features:

1. Low noise, commodious cabin and good view.
2. Safe and reliable traveling.
3. Reasonable structure.
4. Smooth starting and stopping.
5. Saves electricity specifications.
6. Convenient maintenance.
7. Excellent exchangeability for parts.
8. Overload limiter, Limit switch (lifting and traveling), Interlock protection device, Buffer ,Overhaul cage, Rail clear plate, Protective cover ,Bus bar preventer plate, Anticollision  device, Main isolating switch, Emergency stop system, Motor overload protection etc.
